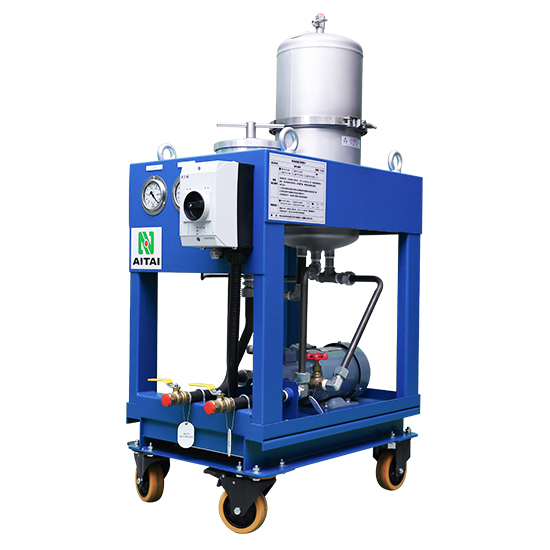

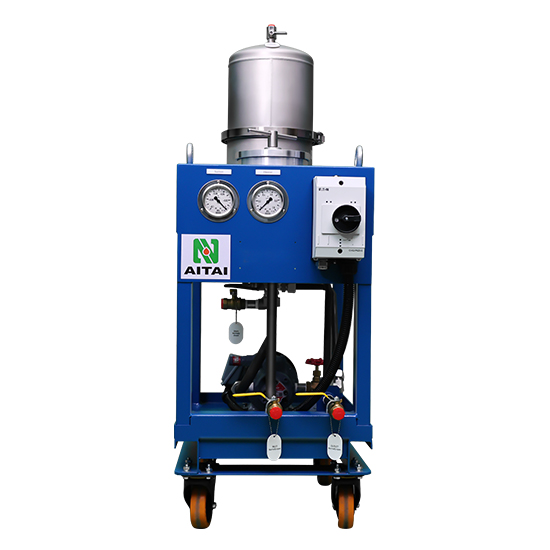

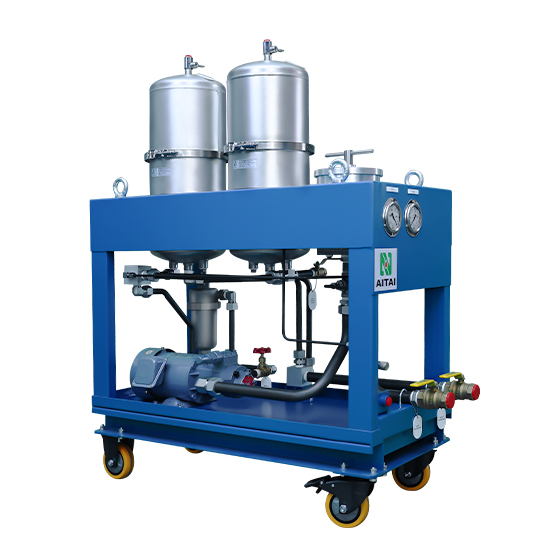

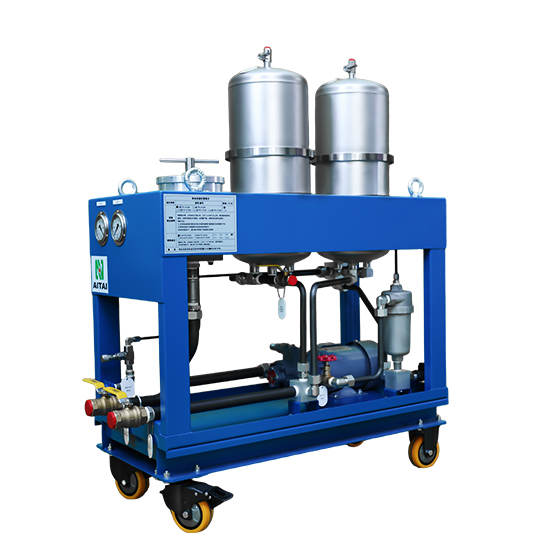

CS Series (Anti-corrosion Type) Precision Oil Purifier

Suitable for online precision filtration of corrosive oils such as phosphate ester oil and water glycol oil in hydraulic systems.

Get in Touch

Product Description

Product Features:
Designed for online precision filtration of corrosive oils such as phosphate ester oil and water glycol oil in hydraulic systems.
Ultra-precision filtration with standard filtration ratio β₃=929.
Removes various contaminants that general filters cannot remove, including micron-level solid impurities, moisture (except for water glycol oil), oxides, degradation substances, and oil sludge paint film.

Benefits:
Prevents hydraulic machinery failures.
Ensures the reliability of long-life cycle equipment operation.
Reduces spare parts, labor, and management costs.
Keeps oil clean for extended periods and significantly reduces oil costs.

Specifications:
Environmental Conditions: Altitude ≤1000m; Ambient temperature -20℃~60℃; Humidity ≤95%RH; No explosive gases; Installation inclination ≤5° from vertical plane; No significant vibration; No corrosive gases to insulation; No water/liquid intrusion; Installation Category II; Outdoor category 2 anti-corrosion environment.

Details

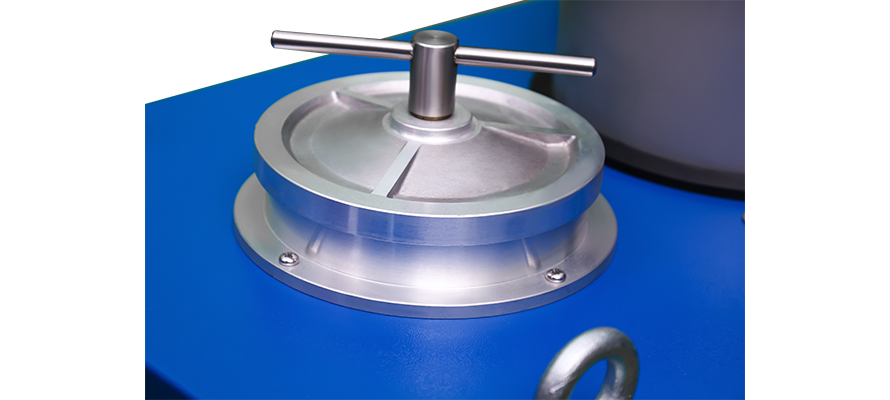

Pre-Filter
Each machine includes a pre-filter and a precision filter. The pre-filter removes large particles to protect the main system, while the precision filter eliminates micron-level contaminants. This design boosts filtration efficiency, extends the precision filter's lifespan, and reduces replacement frequency.

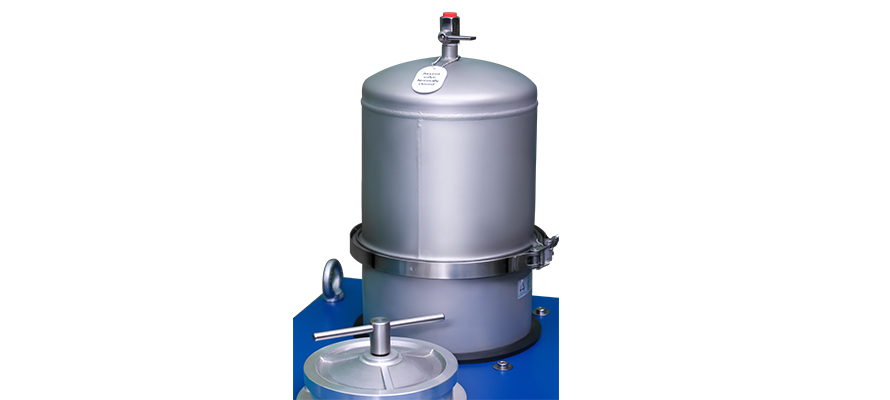

Corrosive Oil Filtration
This model is designed for precision filtration of corrosive fluids such as phosphate ester oils and water-glycol oils. For optimal performance, the M-Series precision filter elements are specifically used for filtering phosphate ester oils, while the WG-Series and DWG-Series elements are dedicated to water-glycol oil filtration.

Parameters

Model	CS-SU103-1RC (phosphate ester oil)/ CS-SU103W-1RC (water glycol oil)	CS-SU103-2RC (phosphate ester oil)/ CS-SU103W-2RC (water glycol oil)	CS-SU103-3RC (phosphate ester oil)/ CS-SU103W-3RC (water glycol oil)
Flow Rate	6L/min	9L/min	18L/min
Inlet/Outlet Diameter	Rc1/2	Rc1	Rc1
Motor Power	0.4kW	0.4kW	0.75kW
Operating Voltage	AC380V 50Hz three-phase four-wire
Operating Pressure	0.5MPa
Filter Precision	β3=929/β5=93、β10=93
Filter Element Quantity	3	6	9
Overall Dimensions	712 * 406 * 1162	993 * 406 * 1164	1273 * 406 * 1174
Weight	65.5kg	88kg	126.5kg
