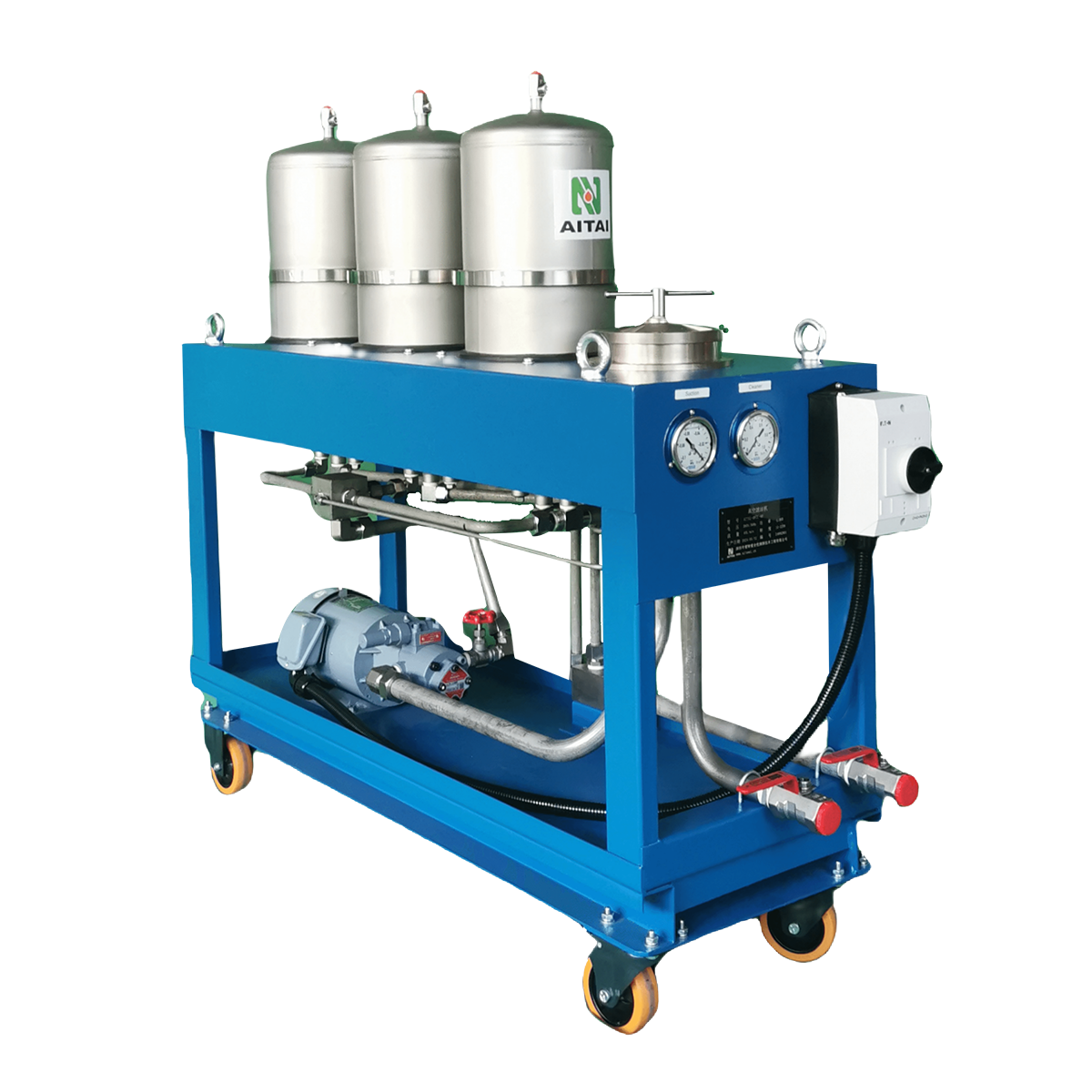

CS Series (Standard Type) Precision Oil Purifier

Suitable for online precision filtration of industrial oils in hydraulic systems, lubrication systems, and other industrial equipment. Widely used in manufacturing, energy, metallurgy, printing, marine, and other industries.

Get in Touch

Product Description

Features:
Designed for online precision filtration of industrial oils in equipment hydraulic systems and lubrication systems.
Provides ultra‑precision filtration with a standard filtration ratio of β₃=929.
Removes various contaminants that ordinary filters cannot eliminate, including micron‑level solid impurities, condensation water, oxides, degradation products, sludge, and paint film.
Optional debubbling device for hydraulic circuits.
Benefits:
Prevents hydraulic machinery failures and ensures long‑term reliable operation of equipment.
Reduces spare parts, labor, and management costs.
Maintains oil cleanliness for extended periods and significantly lowers oil‑related expenses.
Specifications:
Flow rate range: 9–58.5 L/min (multiple models available)
Filtration precision: β₃=929
Tested with 46# hydraulic oil at 40 ℃ ambient temperature
Operating voltage: AC380V 50 Hz three‑phase four‑wire
Environmental conditions: Altitude ≤1000 m; ambient temperature –20 ℃ to 60 ℃; humidity ≤95 %RH; no explosive gases; installation tilt ≤5° from vertical

Details

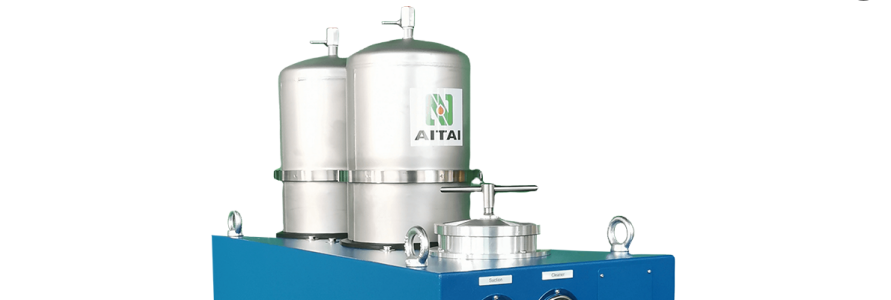

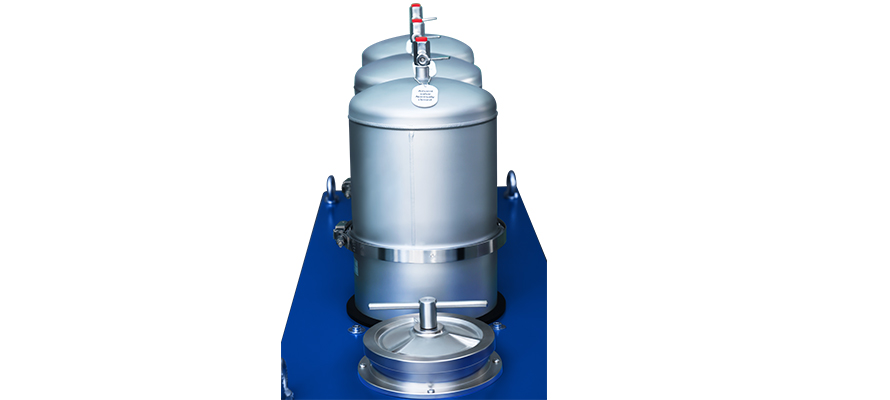

The filter cartridge containers come in two sizes: one holds 3 cartridges, and the other holds 5 cartridges. Depending on the customer's filtration flow rate requirements, the number of cartridge containers can be adjusted. The maximum configuration is 3 containers holding 3 cartridges each or 2 containers holding 5 cartridges each.

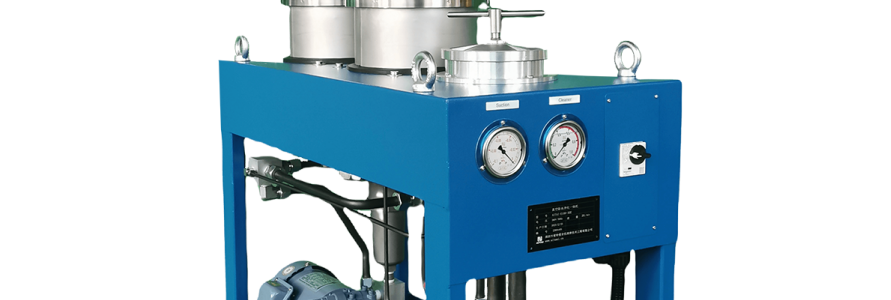

The differential pressure gauge displays the pressure differential after coarse filtration, while the differential pressure gauge shows the pressure differential after fine filtration.

Parameters

Model	CS-SU103-1RC	CS-SU103-2RC	CS-SU103-3RC	CS-SS305-1RC	CS-SS305-2RC
Flow Rate	9L/min	18L/min	24L/min	30L/min	58.5L/min
Inlet/Outlet Diameter	Rc1/2	Rc1	Rc1	Rc1	Rc1-1/4
Motor Power	0.4kW	0.75kW	0.75kW	0.75kW	2.2kW
Operating Voltage	AC380V 50Hz three-phase four-wire
Operating Pressure	0.5MPa
Debubbling Device	Optional (Q)
Filter Precision	β3=929
Filter Element Quantity	3	6	9	5	10
Overall Dimensions	712 * 406 * 1162	993 * 406 * 1164	1273 * 406 * 1174	950 * 584 * 1428	1550 * 824 * 1529
Weight	65.5kg	88kg	126.5kg	160.5kg	359.5kg
