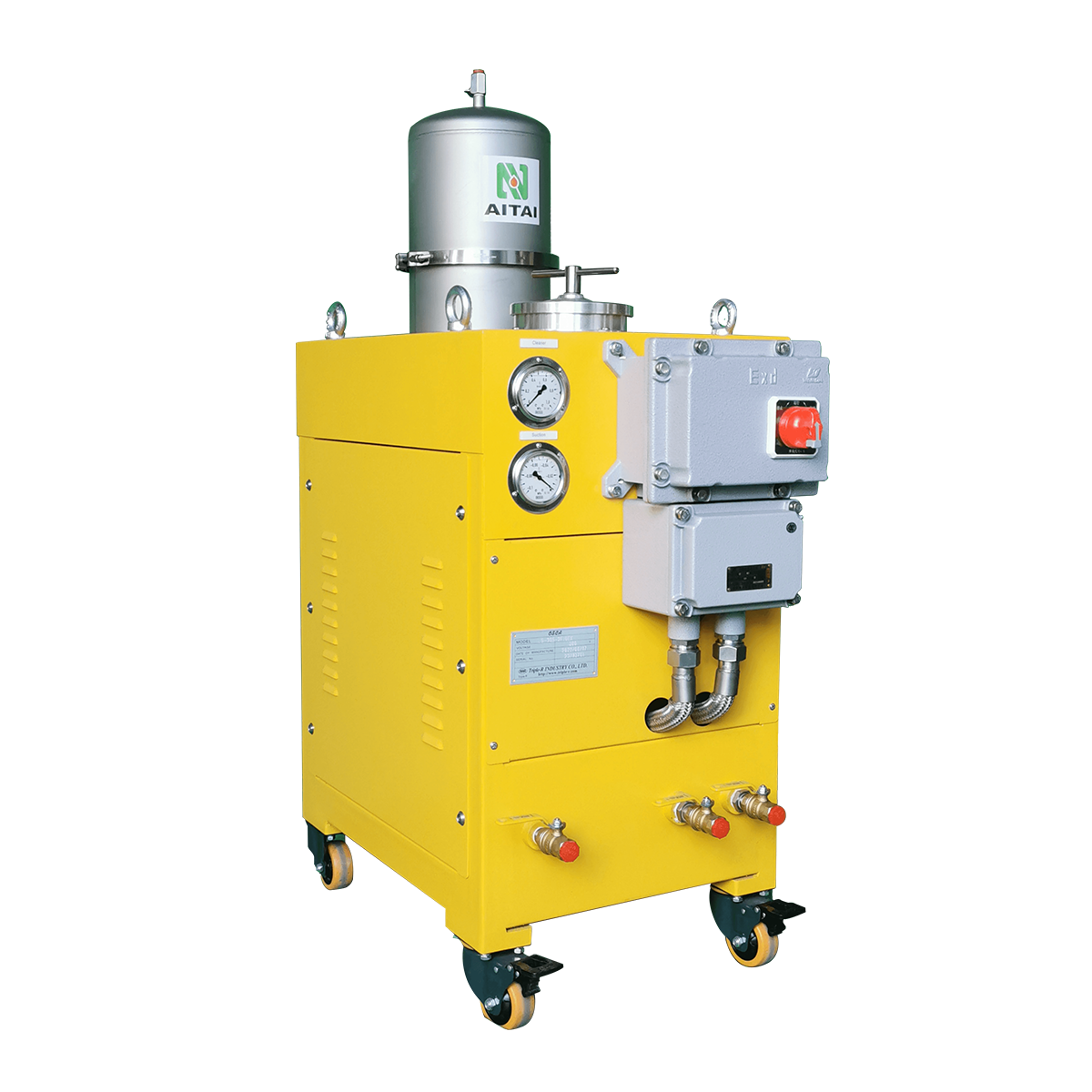

Product Features:
Whole machine explosion-proof certified: ExdeIIBT4Gb / ExdbebIIBT4Gb.
Suitable for explosive gas environments (excluding coal mines and underground).
Ultra-precision filtration with standard filtration ratio β₃=929.
Removes contaminants including solid particles, moisture (condensation water), oxides, degradation substances, and oil sludge paint film.
Optional debubbling device.
Benefits:
Prevents hydraulic machinery failures.
Ensures reliable long-term equipment operation.
Reduces spare parts, labor, and management costs.
Keeps oil clean longer and significantly lowers oil costs.
Specifications:
Flow Rates: Multiple models from 9 L/min to 58.5 L/min.
Filter Precision: β₃=929.
Operating Voltage: AC380V 50Hz three-phase four-wire.
Environmental Conditions: Same as CS Series (Altitude ≤1000m, Temp -20℃~60℃, etc.).
| Model | CS-SU103-1RBEx | CS-SU103-2RBEx | CS-SU103-3RBEx | CS-SS305-1RBEx | CS-SS305-2RBEx |
| Flow Rate | 9L/min | 18L/min | 24L/min | 30L/min | 58.5L/min |
| Inlet/Outlet Diameter | Rc1/2 | Rc1 | Rc1 | Rc1 | Rc1-1/4 |
| Motor Power | 0.75kW | 0.75kW | 0.75kW | 0.75kW | 2.2kW |
| Operating Voltage | AC380V 50Hz three-phase four-wire | ||||
| Operating Pressure | 0.5MPa | ||||
| Debubbling Device | Optional (Q) | ||||
| Filter Precision | β3=929 | ||||
| Filter Element Quantity | 3 | 6 | 9 | 5 | 10 |
| Overall Dimensions | 980 * 454 * 1233 | 1236 * 454 * 1256 | 1550 * 454 * 1256 | 950 * 580 * 1428 | 1550 * 824 * 1529 |
| Weight | 118.5kg | 139kg | 184.5kg | 214kg | 400kg |
