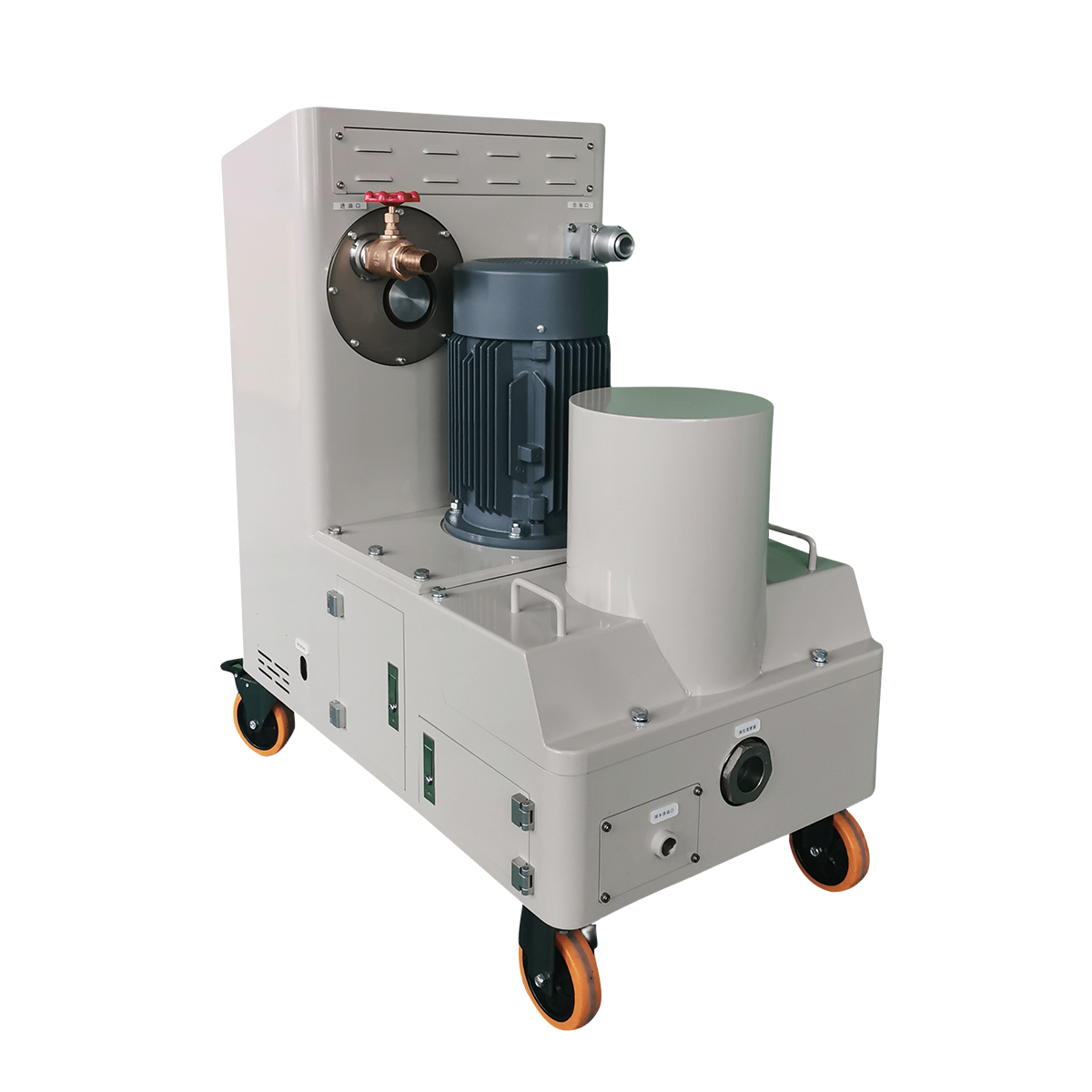

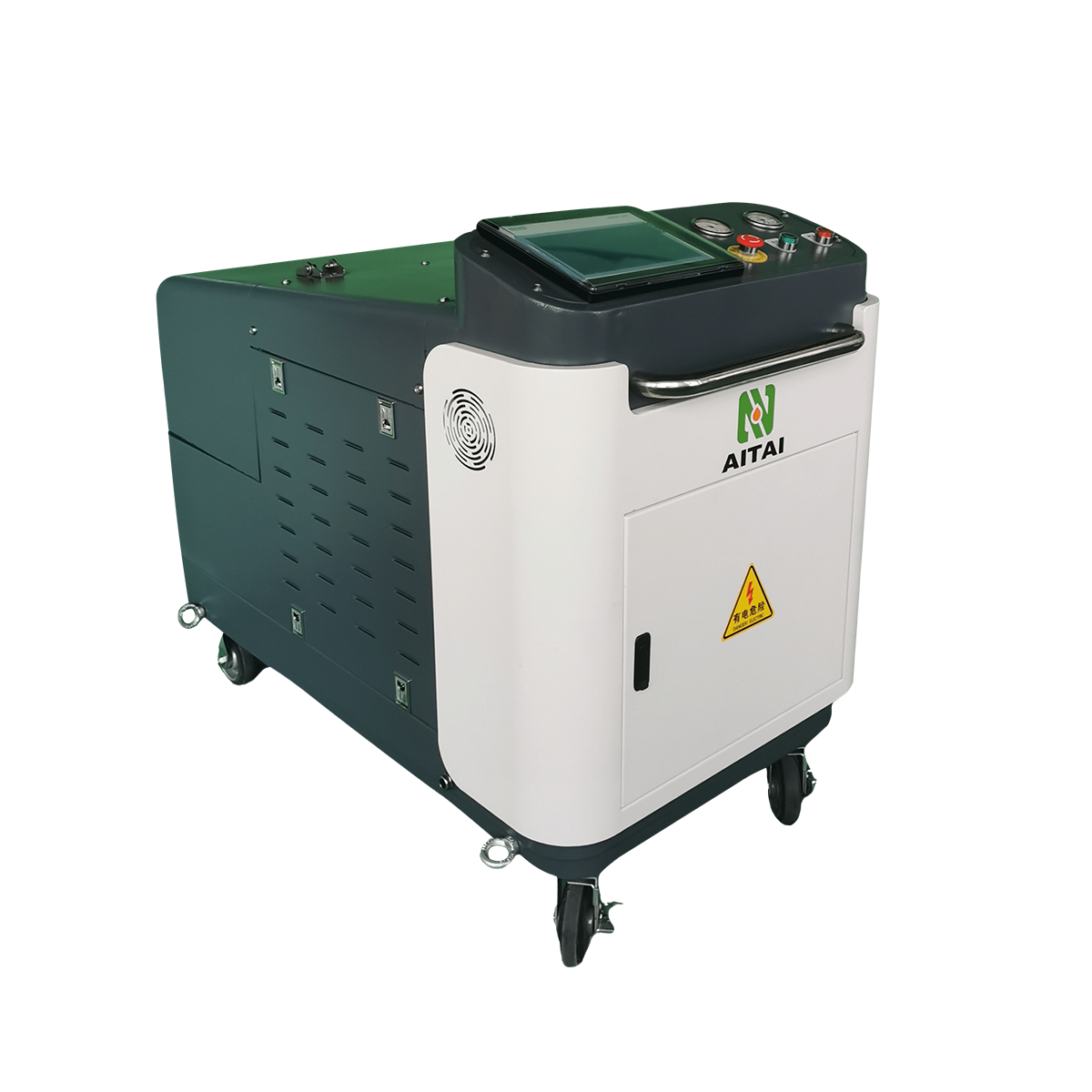

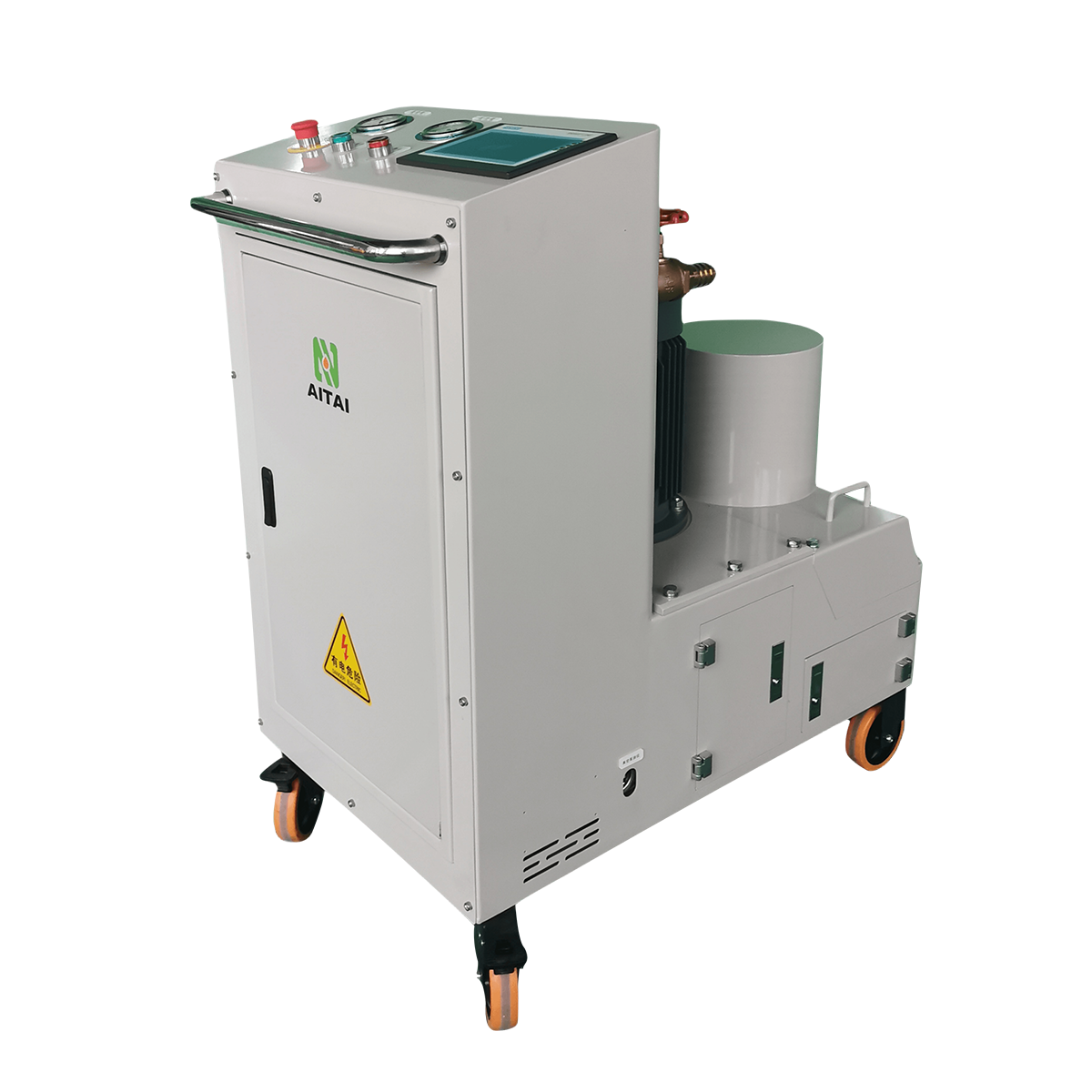

Product Features:
Adopts vacuum centrifugal composite principle for simultaneous removal of solid, liquid, and gas contaminants.
No filter material consumption (except for optional 2RA/2RB filter modules).
Large contaminant capacity and high flow rate.
Can remove free water, dissolved water, and air bubbles effectively.
Benefits:
Three-phase simultaneous separation (solid, water, gas).
Broadens oil purification scope and improves efficiency.
Low consumable cost after initial setup.
Suitable for high-moisture and high-particulate applications.
Specifications:
Water Removal Performance: Free water 100%; Bubbles 100%; Dissolved water 80%.
Optional precision filtration modules: 2RA (fiberglass) or 2RB (cellulose) for particle and paint film removal.
| Model | Remark | ATA-GT-60E | ATA-GT-150E |
| Contamination Level(46# hydraulic oil) | ≤NAS7Level | ||
| Contaminant Capacity | ≥1kg | ||
| Moisture Content | ≤0.10% | ||
| Gas Content | No free gas | ||
| Applicable Viscosity Range | ≤220mm2/s | ≤680mm2/s | |
| Flow Rate | 46# Viscosity | ≥60L/min | ≥100L/min |
| 32# Viscosity | ≥90L/min | ≥150L/min | |
| Inlet Pressure | ≥-0.02MPa | ≥-0.02MPa | |
| Maximum Outlet Pressure | ≥0.3MPa | ≥0.3MPa | |
| Oil Inlet Diameter | 1-Inch Barb Fitting | Rc1-1/4 | |
| Oil Outlet Diameter | 1-Inch Barb Fitting | Rc1-1/4 | |
| Drainage Outlet Diameter | Rc1/2 | Rc1/2 | |
| Main Motor Rated Speed | 2930rpm | 2930rpm | |
| Motor Power | 4kW | 4kW | |
| Operating Voltage | AC380V 50Hz Three-Phase Five-Wire | AC380V 50Hz Three-Phase Five-Wire | |
| Operating Pressure | 0.5MPa | 0.5MPa | |
| Overall Dimensions | 963 * 581 * 1065 | 1323 * 760 * 1049 | |
| Weight | 245.5 kg | 340 kg | |
