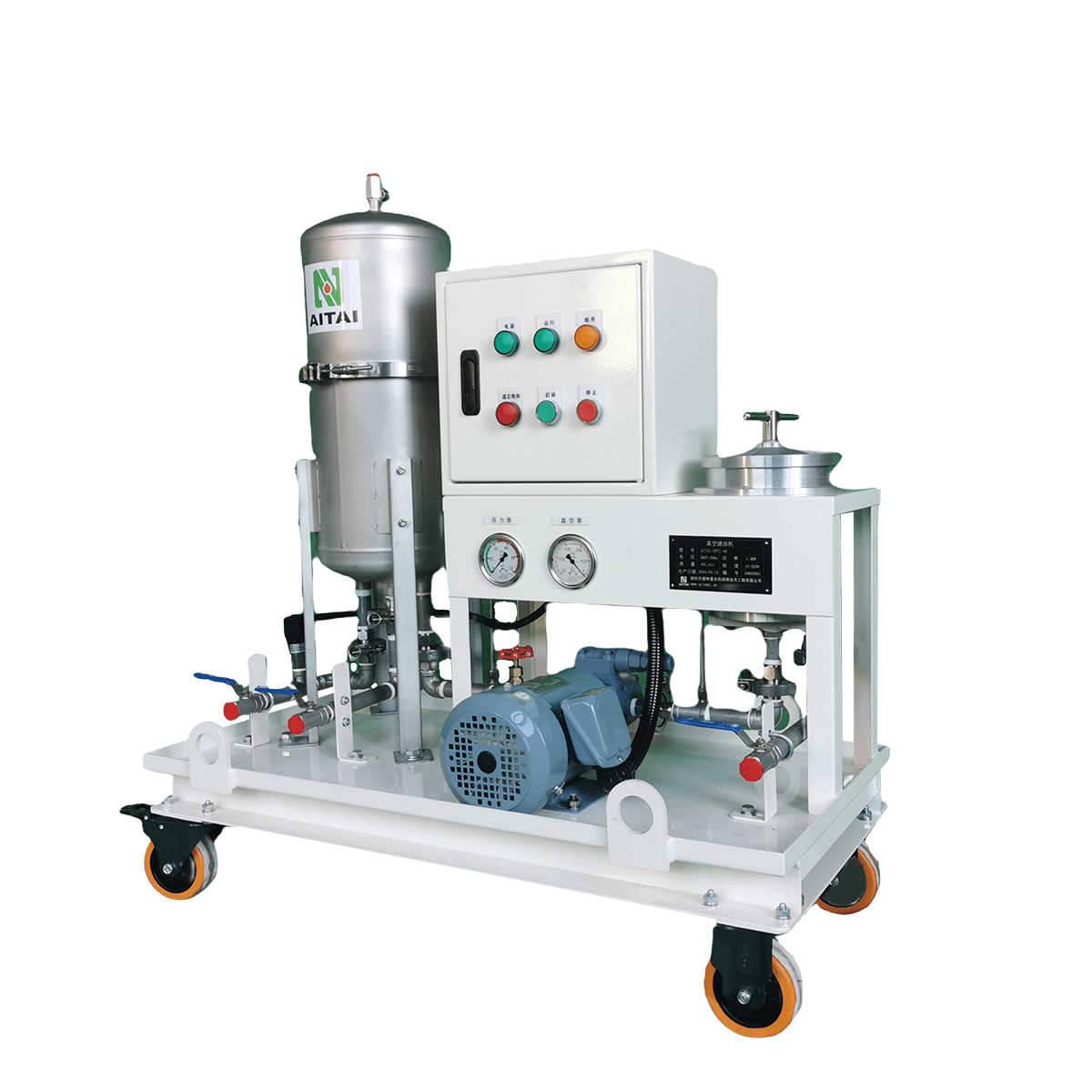

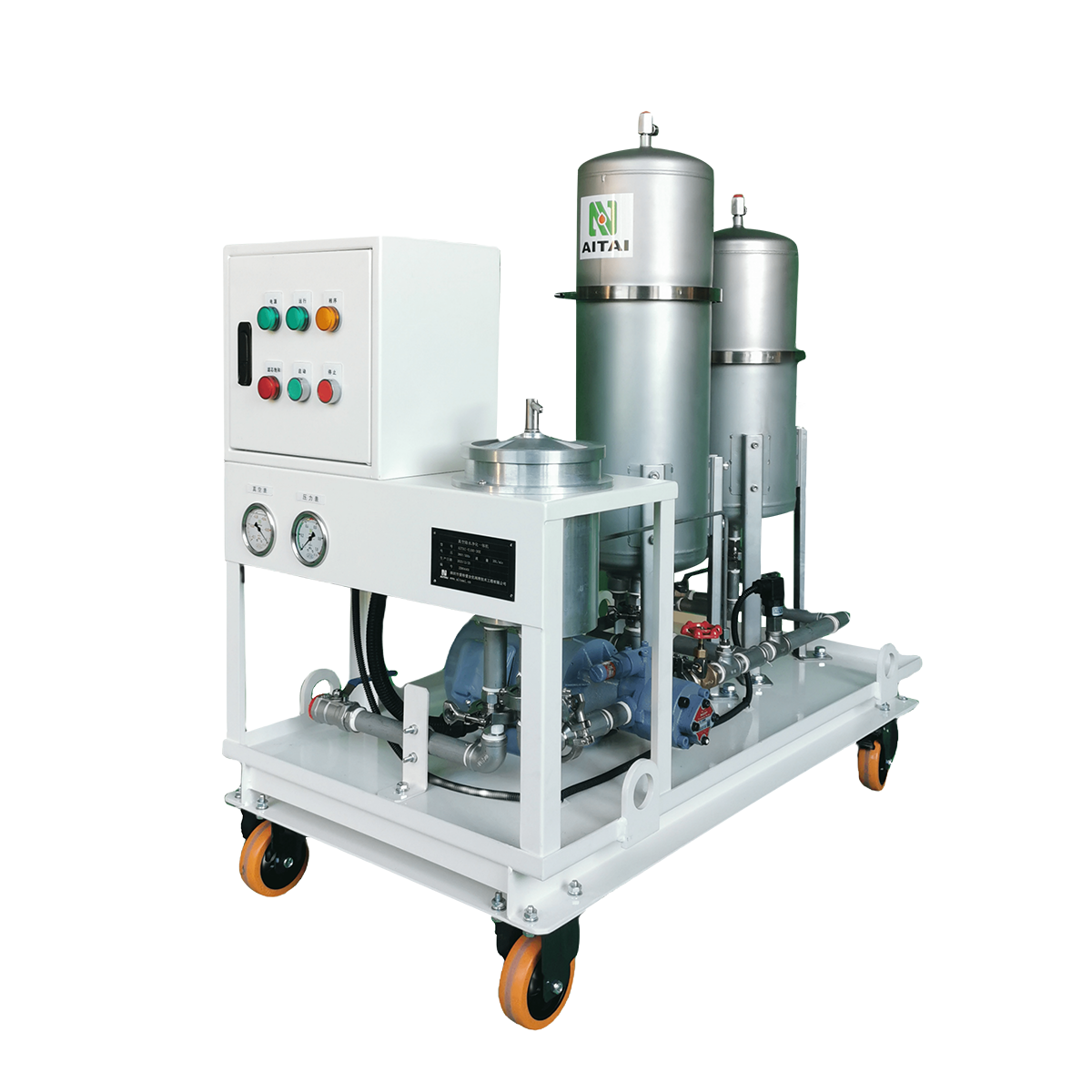

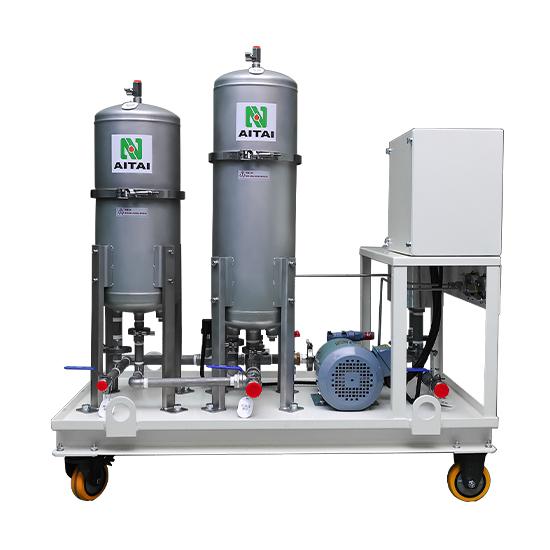

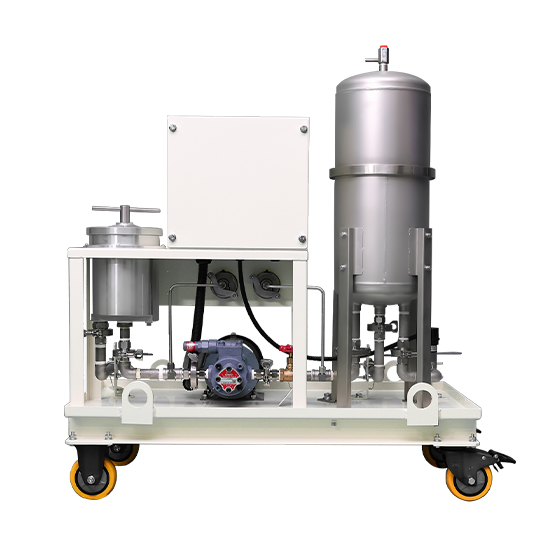

IOP Series Intelligent Precision Oil Purifier

Suitable for online precision filtration of industrial oils in equipment hydraulic systems and lubrication systems with intelligent control features.

Get in Touch

Product Description

Product Features:
Designed for online precision filtration of industrial oils.
Intelligent control with automatic shutdown upon filter saturation and phase sequence protection.
Ultra-precision filtration with β₃=929.
Removes solid impurities, moisture (condensation water), oxides, degradation substances, and oil sludge paint film.
Optional debubbling device.

Benefits:
Prevents hydraulic machinery failures.
Ensures reliable long-term operation.
Reduces maintenance and operating costs.
Extends oil life and maintains oil cleanliness.

Specifications:
Environmental Conditions: Same as other series (Altitude ≤1000m, Temp -20℃~60℃, etc.).

Details

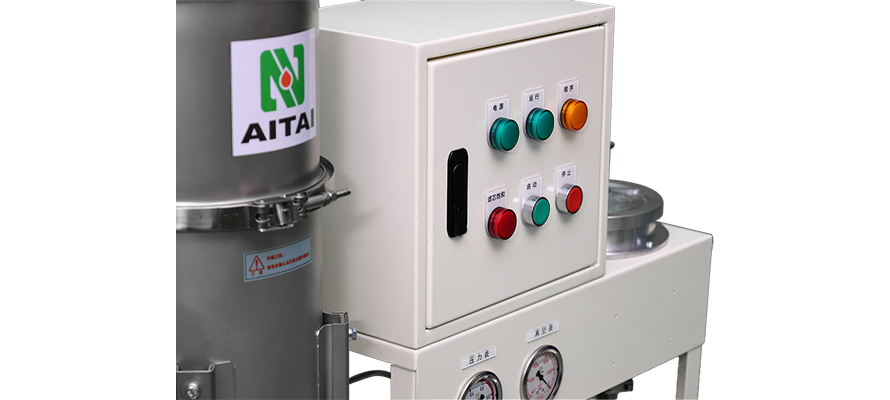

Protection & Monitoring Features
This unit is equipped with an automatic shutdown function activated upon filter element saturation, as well as a phase sequence protection function. When operational faults occur or the machine stops, the corresponding indicator light on the panel illuminates, facilitating easy troubleshooting and prompt restoration of operation.

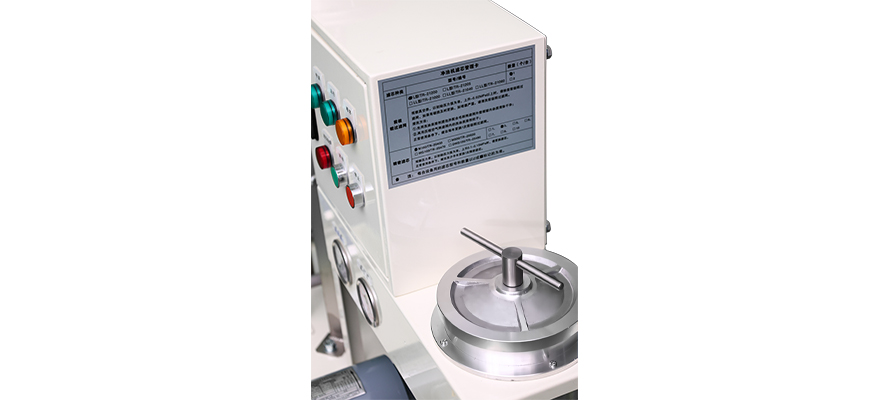

Pre-filter
Each machine includes a pre-filter and a precision filter. The pre-filter removes large particles to protect the main system, while the precision filter eliminates micron-level contaminants. This design boosts filtration efficiency, extends the precision filter's lifespan, and reduces replacement frequency.

Parameters

Model	AITAI-IOP103		AITAI-IOP105		AITAI-IOP107
Anti-corrosion type	Phosphate ester type/Water glycol type	Standard type	Phosphate ester type/Water glycol type	Standard type	Phosphate ester type/Water glycol type	Standard type
Flow Rate	6L/min	9L/min	9L/min	15L/min	18L/min	24L/min
Inlet/Outlet Diameter	Rc1/2		Rc1		Rc1
Motor Power	0.4kW		0.4kW		0.75kW
Operating Voltage	AC380V 50Hz three-phase four-wire
Operating Pressure	0.5MPa		0.5MPa		0.5MPa
Filter Precision	β3=929/β5=93/β10=93	β3=929	β3=929/β5=93/β10=93	β3=929	β3=929/β5=93/β10=93	β3=929
Filter Quantity	3		5		7
Overall Dimensions	875 * 441 * 957		875 * 441 * 1193		1000 * 566 * 1081
Weight	65kg		68kg		91.5kg
