Product Features:
Combines centrifugal and vacuum dehydration principles.
Centrifuge removes solid particles and free water.
Vacuum removes residual dissolved water and bubbles without heating.
Wide viscosity applicability and large contaminant capacity.
No filter material consumption.
Benefits:
Highly efficient purification for both solids and water.
Extends oil life by avoiding thermal stress.
Low operating cost (no replaceable filter elements for basic functions).
Suitable for heavily contaminated or watery oil conditions.
Specifications:

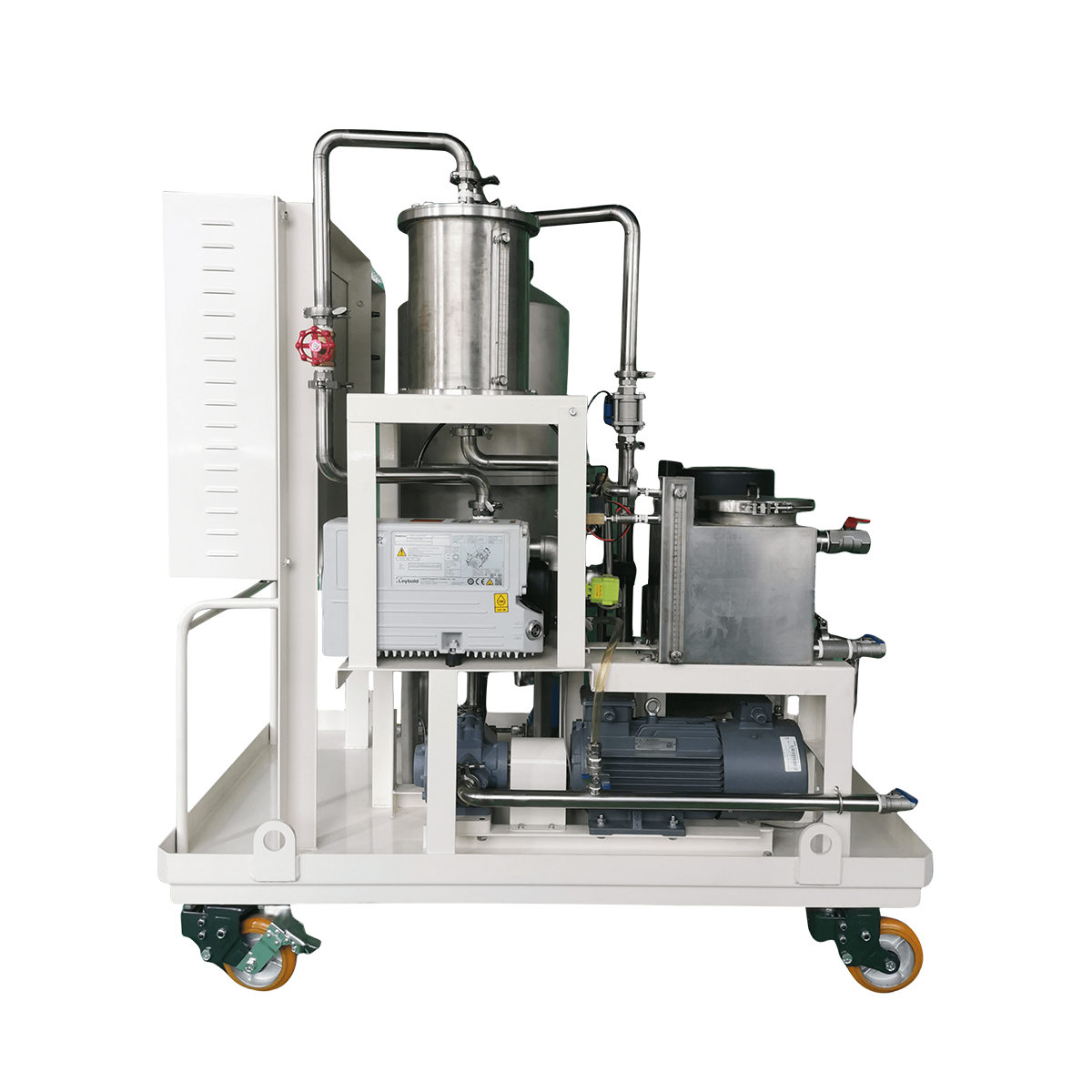

Model Example: AITAI-LZH-50
Flow Rate: 50 L/min
Motor Power: 7.5 kW
Operating Voltage: AC380V 50Hz three-phase five-wire
Vacuum Level: -0.06 MPa
Contaminant Capacity: ≥1 kg
Dimensions: 1450 × 964 × 1635 mm
Weight: 544 kg
|
Device Model |
AITAI-LZH-50 |
|
Flow Rate |
50L/min |
|
Motor Power |
7.5kW |
|
Operating Voltage |
AC380V 50Hz three-phase five-wire |
|
Oil Inlet Diameter |
Rc1-1/4 |
|
Oil Outlet Diameter |
Rc1 |
|
Vacuum Level for Water Removal |
-0.06MPa |
|
Operating Pressure |
0.5MPa |
|
Contaminant Capacity |
≥1kg |
|
Overall Dimensions |
1450 * 964 * 1635 |
|
Weight |
544kg |
AITAI, founded in 2013, is a high-tech enterprise focused on TEL. As the strategic partner of 3R Group Japan, we provides ultra-precision purifiers, on-site solutions, and oil testing& analysis, Serving metallurgy, automobile, power, marine, petrochemical, and machinery industries.
