Product Features:

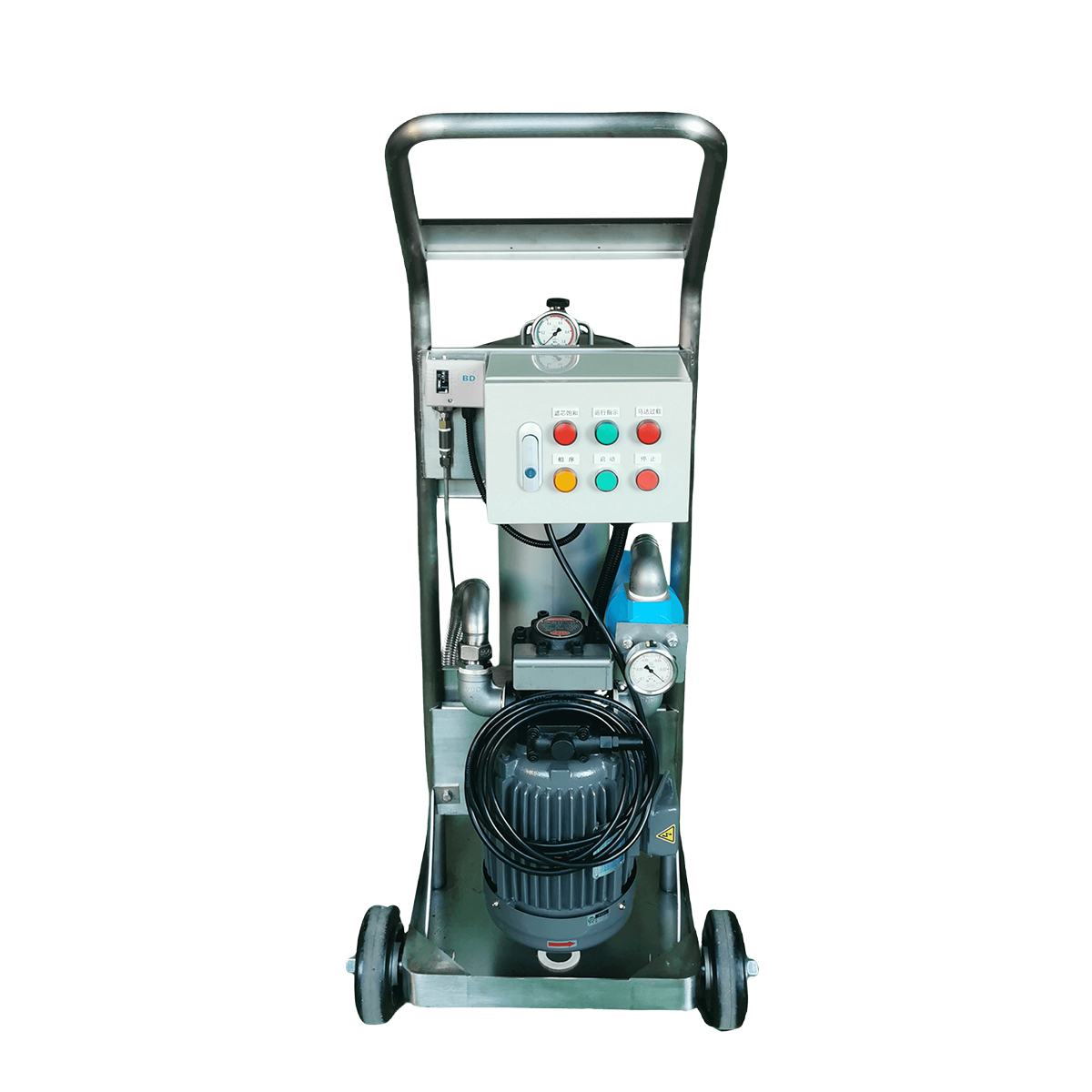

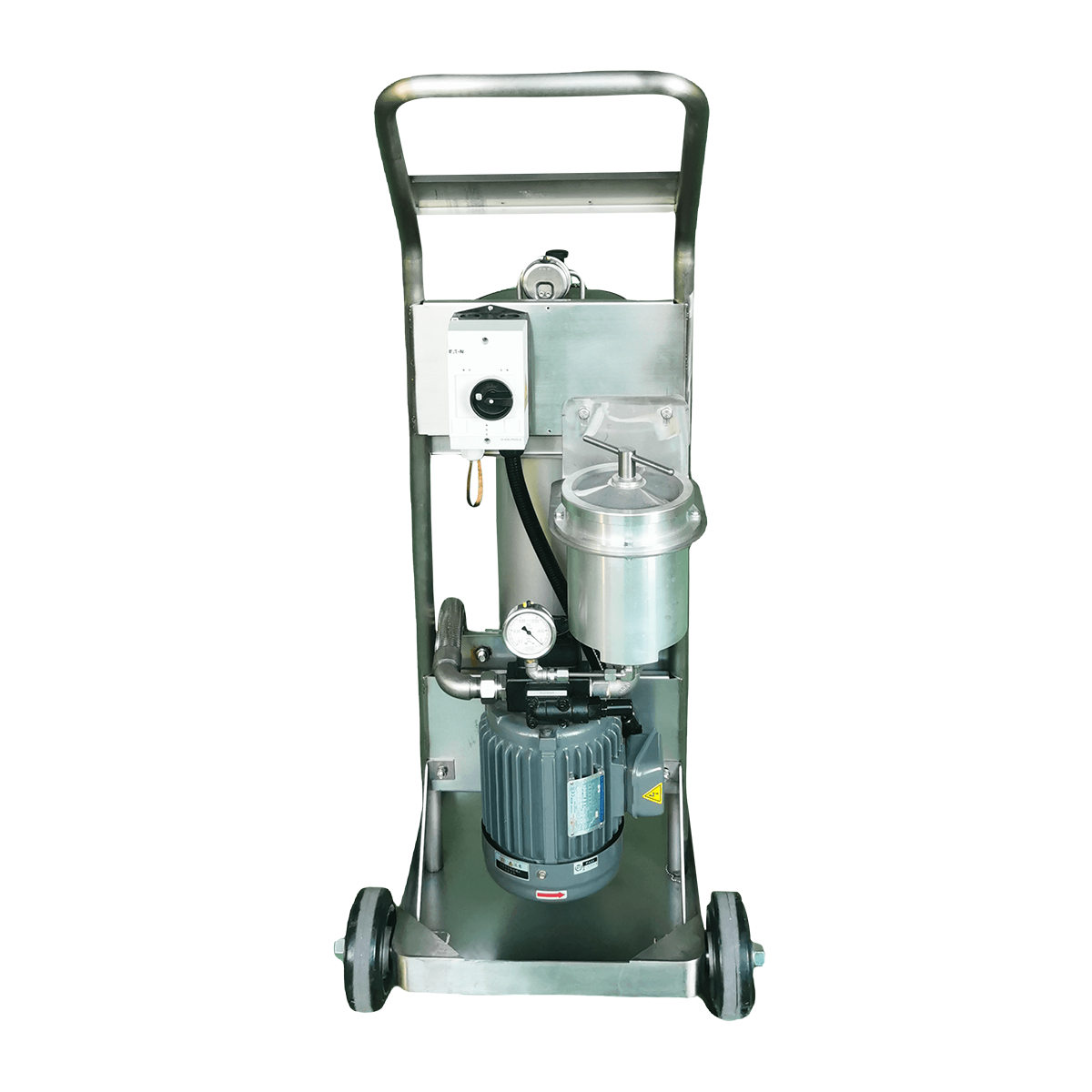

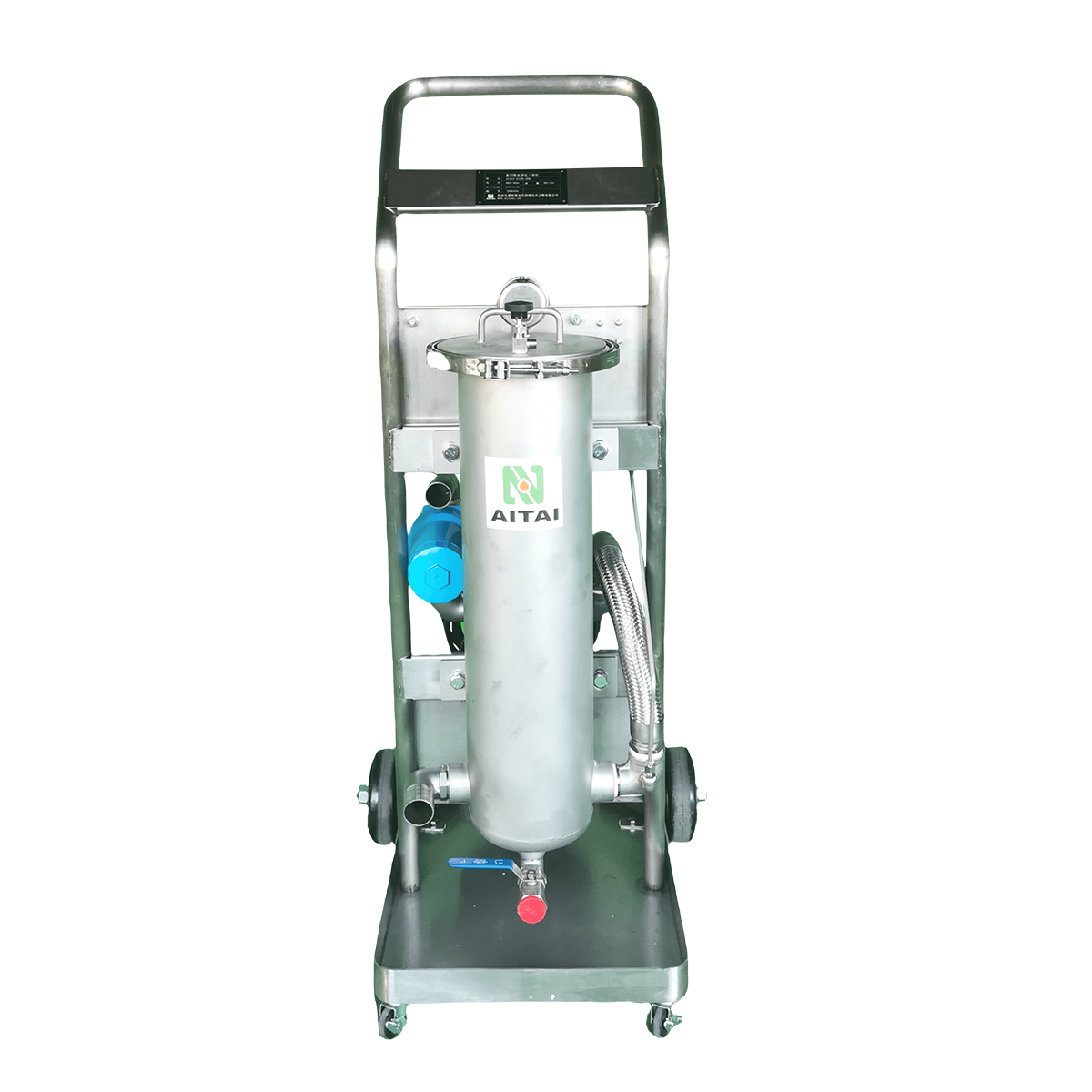

Integrated mobile solution for oil handling, filtration, and transfer.
Typically includes pumps, filters, tanks, hoses, and control system.
Designed for high flow rates and efficient offline purification.
May include vacuum dehydration or centrifugal modules in high-end configurations.
Benefits:
Enables efficient oil maintenance and recycling on-site.
Reduces downtime by allowing offline purification during operation.
Extends oil life and reduces new oil purchases.
Improves maintenance flexibility and resource utilization.
Specifications:
(Note: Detailed specs for OFC/OFCL not fully listed in provided catalog excerpt. General features inferred from industry standard oil servicing vehicles.)
Typical configurations include various pump capacities, filter types, tank sizes, and optional features like heating, vacuum dehydration, or particle counting.
|
Device Model |
AITAI-OFC-50（20） |
AITAI-OFC-100（20） |
||||
|
Flow Rate |
50L/min |
100L/min |
||||
|
Inlet/Outlet Diameter |
φ32mm Barb Fitting |
φ40mm Barb Fitting |
||||
|
Motor Power |
1.5kW |
2.25kW |
||||
|
Operating Voltage |
AC380V 50Hz three-phase four-wire |
|||||
|
Weight |
66kg |
88kg |
||||
|
Overall Dimensions |
525 * 568 * 1180 |
|||||
|
Filter Element Material |
Fiberglass |
|||||
|
Filter Element Precision |
1μm |
3μm |
5μm |
10μm |
20μm |
|
|
Filter Element Model |
1500LL |
3500LL |
5500LL |
10500LL |
20500LL |
|
AITAI, founded in 2013, is a high-tech enterprise focused on TEL. As the strategic partner of 3R Group Japan, we provides ultra-precision purifiers, on-site solutions, and oil testing& analysis, Serving metallurgy, automobile, power, marine, petrochemical, and machinery industries.
