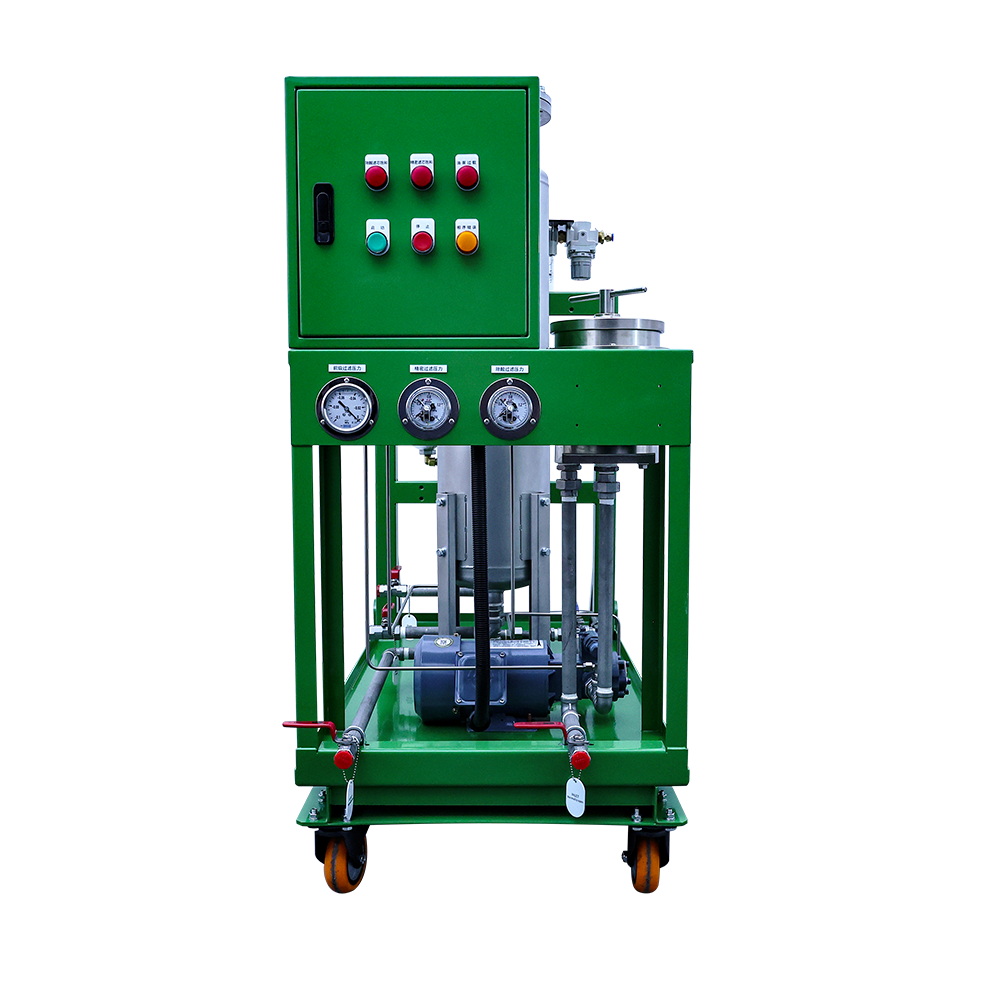

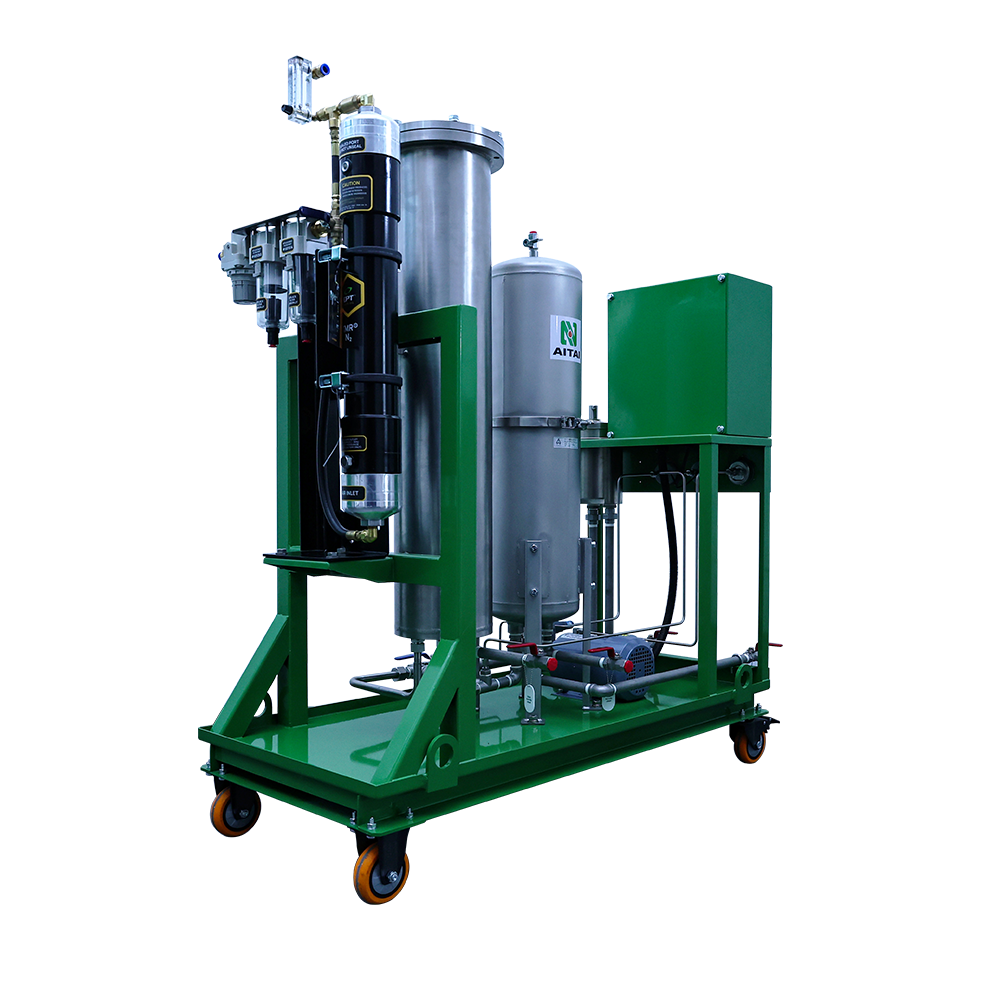

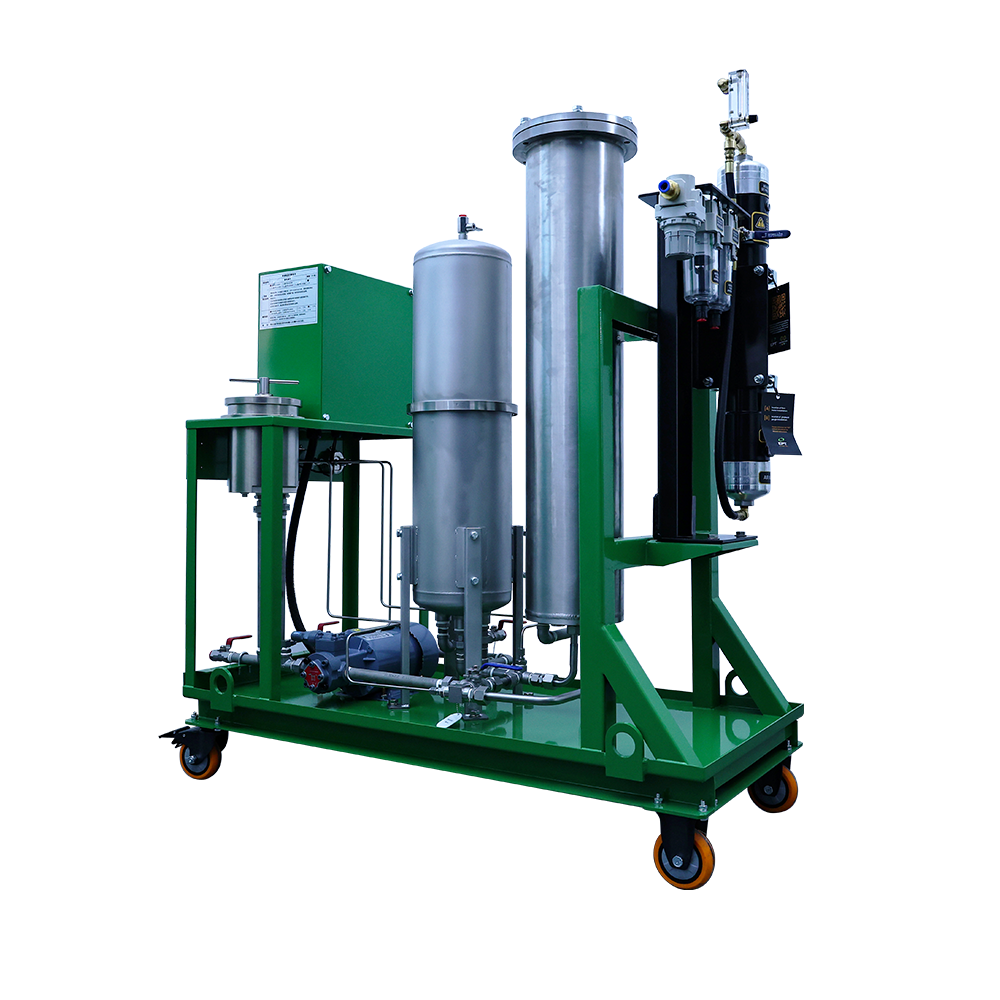

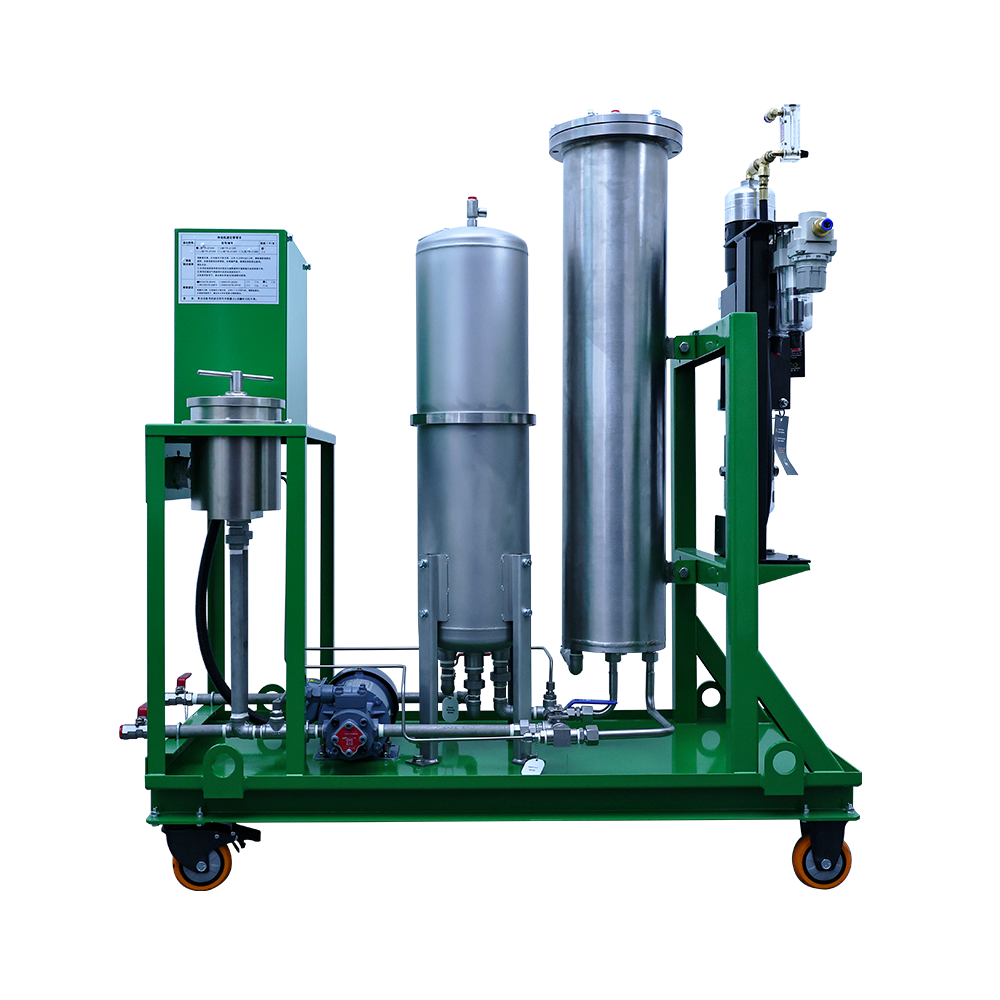

ZJ Fire-Resistant Oil Purification & Regeneration System for Turbine EHC Fluid

ZJ Series Fire Resistant Oil Regeneration Purification System is specially designed for purification and regeneration of phosphate ester fire-resistant oil used in EH control systems of steam turbines. It effectively controls acid value, moisture, particle contamination, and resistivity to ensure stable operation of power equipment.This oil purifier system integrates precision filtration, dehydration, acid removal, and ion adsorption technologies to restore oil performance and significantly extend oil service life.

Get in Touch

Product Description

Product Features:
1. Ultra-precision filtration with β3≥929, achieving NAS 5–6 cleanliness
2. Efficient removal of micron-level particles, sludge, and oxidation by-products
3. Advanced dehydration system removes free water and dissolved moisture
4. Regeneration unit with ion exchange resin for strong acid removal performance
5. Effectively improves oil resistivity by absorbing metal ions (Ca, Mg, Fe, etc.)
6. Nitrogen-based active dehydration system prevents secondary contamination
7. Continuous online oil purification ensures stable oil quality
8. Modular design allows flexible operation and easy maintenance

Benefits:
1. Extends fire-resistant oil service life by over 80%
2. Reduces oil replacement and maintenance costs significantly
3. Prevents turbine control system failures and downtime
4. Improves reliability and safety of EH hydraulic systems
5. Maintains stable oil cleanliness, moisture, and acid level
6. Enhances overall efficiency of power plant operations

Details

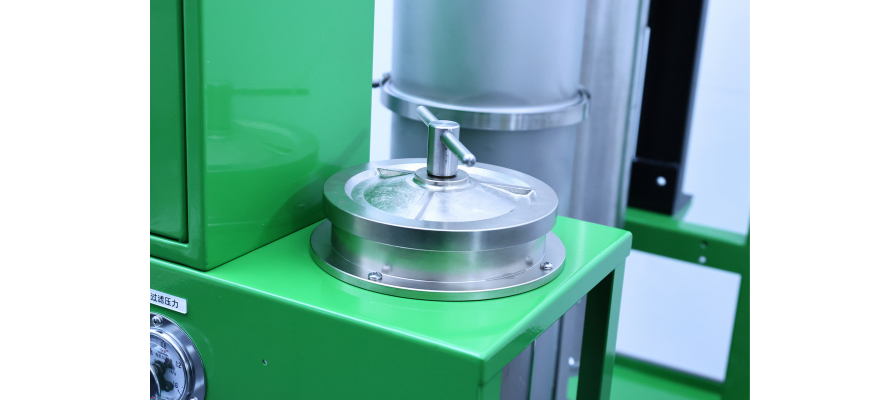

Pre-filter
Removes large particles before the oil reaches main components. Protects the pump and fine filters to ensure smooth oil flow and extend equipment life.

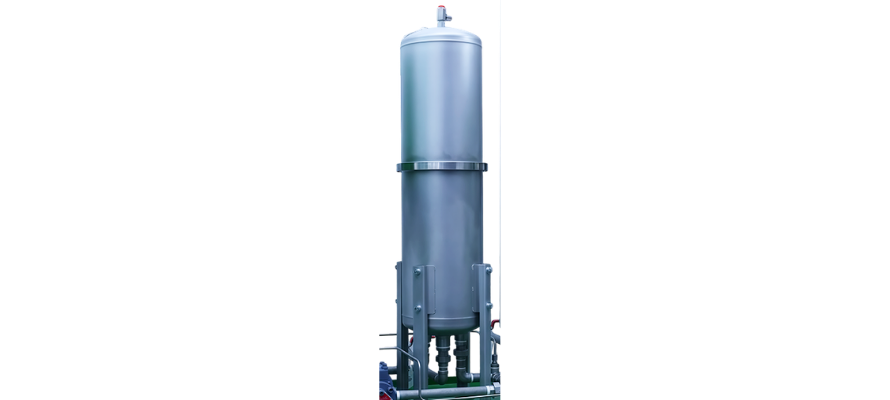

Regeneration Filter Unit
Utilizes specialized spherical ion-exchange resin elements to absorb acid compounds and dissolved metal ions (Ca, Mg, Na, Fe, Al). It continuously reduces the acid value, recovers high electrical resistivity, and inhibits varnish and sludge formation without generating water or causing secondary contamination.

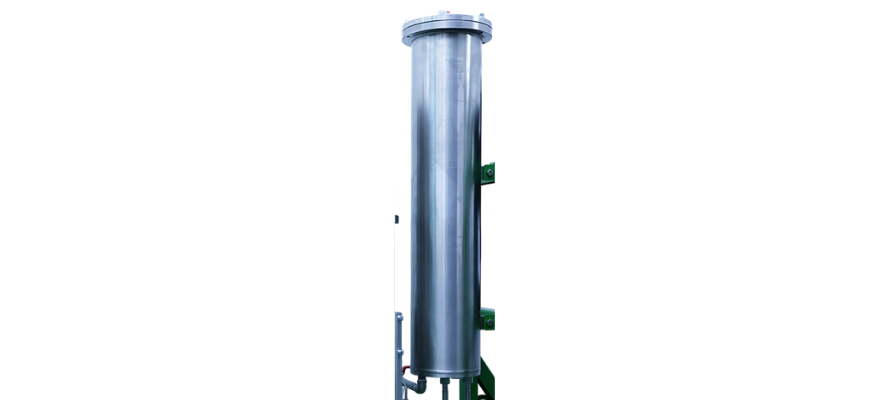

Ultra-Precision Filter Unit
Uses a high-efficiency 3-layer depth element (beta3 = 929) to catch fine particles, oxidation products, and moisture. Cleans oil to NAS Class 3–6 in a single pass for maximum purity.

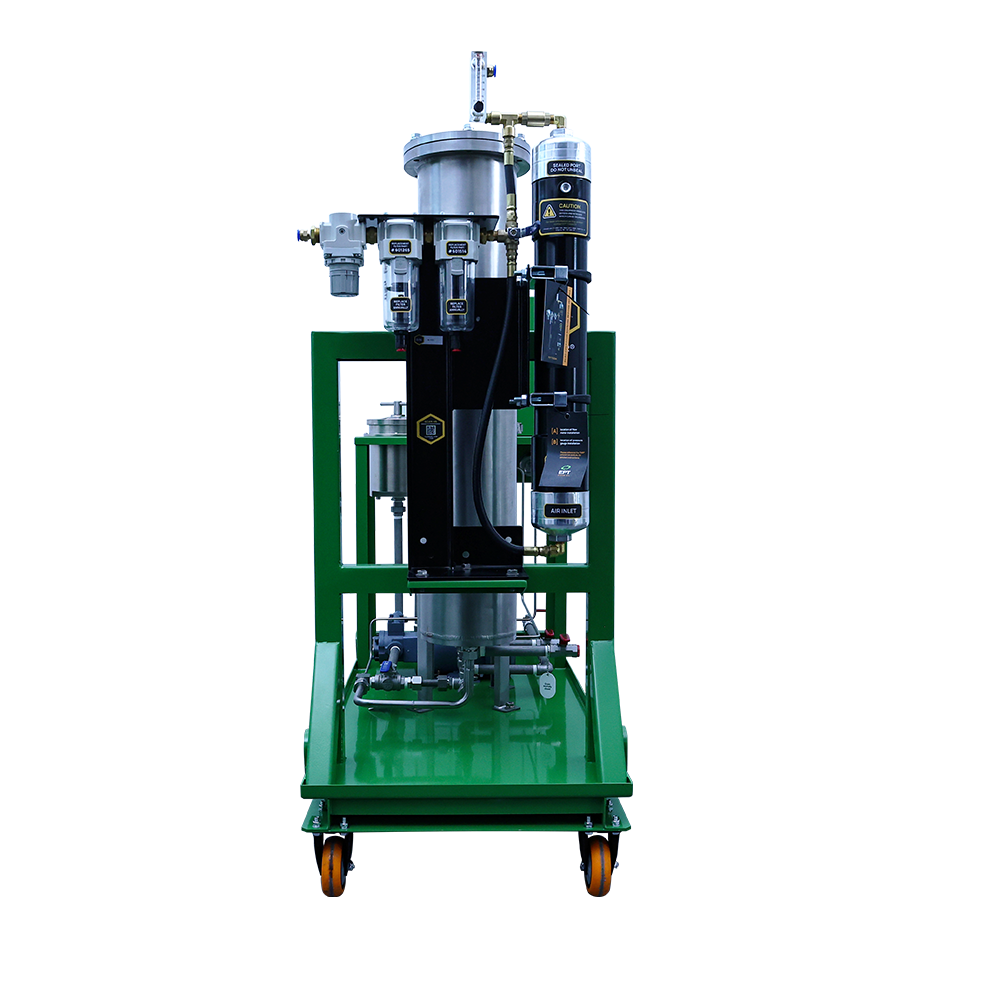

Dehydration Unit
An active headspace management system (TMR-N2) that converts compressed air into ultra-clean, dry nitrogen (up to 98% purity). By continuously flushing the oil reservoir headspace, it actively strips free and dissolved moisture, oxygen, and airborne particulate contaminants out of the fluid.

Parameters

Model	AITAI-ZJN2-1RC	AITAI-ZJN2-2RC
Flow Rate	6L/min	9L/min
Motor Power	0.4kW
Operating Voltage	AC380V 50Hz
Operating Pressure	0.6MPa
Filter Precision	β3=929
Overall Dimensions (mm)	12485661357	12485661357
